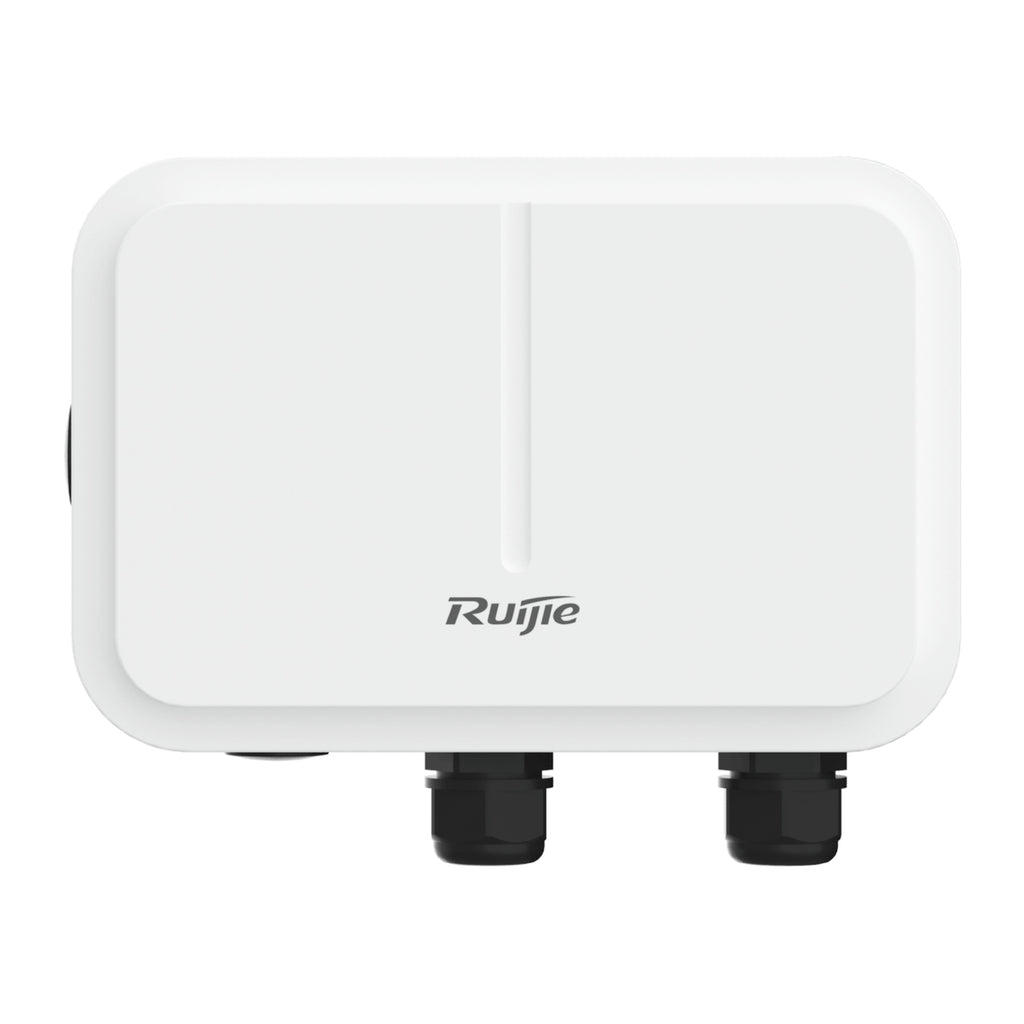

AP Wi-Fi 6 dual radio outdoor de alta potencia RG-AP680(CD) 2.402 Gbps
Precio habitual $1,317,000
PREGUNTAS Y RESPUESTAS
¿Tienes alguna pregunta?
Sé el primero en hacer una pregunta sobre esto.
El RG-AP680(CD) es un punto de acceso inalámbrico outdoor de alta potencia con tecnología Wi-Fi 6 y doble radio, capaz de alcanzar una velocidad de 2.402 Gbps. Está diseñado para entregar conectividad confiable en entornos de clima extremo a distancias prolongadas.
Es la solución recomendada para escenarios exteriores como instituciones de educación superior, ciudades inalámbricas, sector energético y complejos comerciales, donde se requiere cobertura estable y de alto desempeño en exteriores.
- Tecnología Wi-Fi 6 con doble radio.
- Velocidad de 2.402 Gbps.
- Diseño outdoor de alta potencia.
- Conectividad confiable en entornos de clima extremo.
- Cobertura a distancias prolongadas.
- Recomendado para educación superior, ciudades inalámbricas, sector energético y complejos comerciales.
Especificaciones
| Dimensions and Weight | RG-AP680(CD) |
| Unit dimensions (W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Shipping dimensions (W x D x H) | 451 mm x 242 mm x 337 mm (17.76 in. x 9.53 in. x 13.27 in.) |
| Unit weight | Main unit: 1.17 kg (2.58 lbs) Mounting bracket: 0.2 kg (0.44 lbs) |
| Shipment weight | 5.84 kg (12.87 lbs) |
| Mounting | Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
| Wi-Fi Radio | RG-AP680(CD) |
| Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
| Operating frequencies | Radio 1: 802.11b/g/n/ax ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 Radio 2: 802.11a/n/ac/ax ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, |
| Data rates | Combined peak date rate for 2.4 GHz and 5 GHz radios: 1.775 Gbps Combined peak date rate for 5 GHz and 5 GHz radios: 2.402 Gbps Radio 1: 2.4 GHz: 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two s |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40) ● 802.11ax: 8.6 to 57 |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Antenna type | Built-in intelligent antennas |
| Antenna gain | 2.4 GHz: 9 dBi 5 GHz: 9 dBi |
| Maximum transmit power | 2.4 GHz radio: 28 dBm (25 dBm per chain) 5 GHz radio: 28 dBm (25 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance . Thailand 2.400 GHz to 2.4835 GHz: 20 dBm 5.470 GHz to 5.725 GHz: 30 dBm 5.725 |
